T9
005
-
T7S
006
雙端面密封 非平衡型 任意旋向 多彈簧結構 Double seal , Unbalanced, Dependent, on direction of rotation Multiple spring 具有與T7系列相同設計性能，除驅動座的安裝長度職位，其他安裝尺寸（d<100mm）復合DIN24960標準。 The T7 family of single seals(easy-to-replace seal face, etc.). Apart from the installation length of the drive collar , all fitting dimensions( d1 <100 mm) conform with DIN 24960. -
153
008
雙端面密封 非平衡型 任意旋向 Double seal,Unbalanced,Independent of direction of rotation -
FBD
009
單端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
MSS32B(水封）
010
-
BIA
011
單端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
T1
012
單端面密封 非平衡型 任意旋向 橡膠波紋管 Single seal,Unbalanced,Independent on direction of rotation,Elastomer bellows -
WB2
013
單端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent on direction of rotation
006

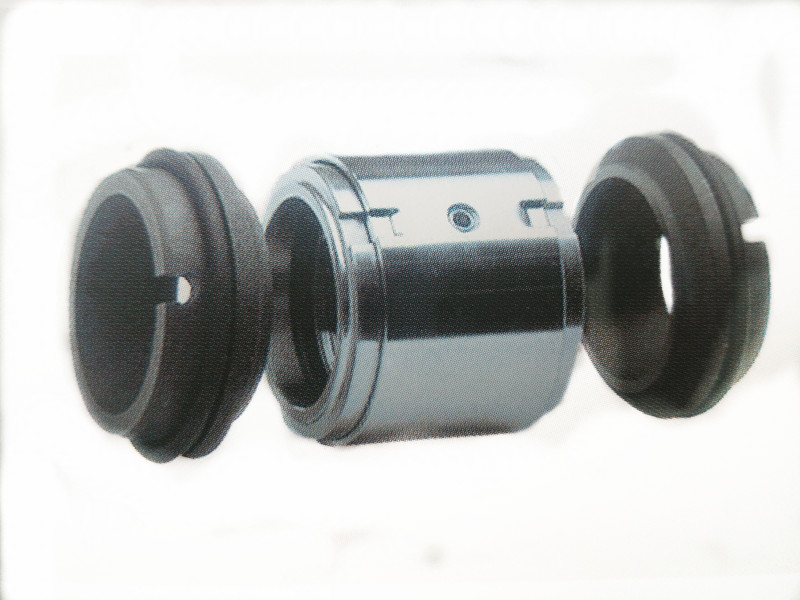

型號：T7S
技術參數：
被密封介質：水、油、中等弱腐蝕性介質
密封腔壓力：≤1MPa
密封腔溫度：-50℃~220℃
線速度：≤20m/Sec
MAIN CHARACTERISTICS:
Mediums to be sealed: Water ,oil ,etc.weak corrosive medium
Pressure in the sealed chamber : ≤ 1MPa
Temperature in the sealed chamber ：-50℃~220℃
Linear velocity ：≤ 20m/Sec
008

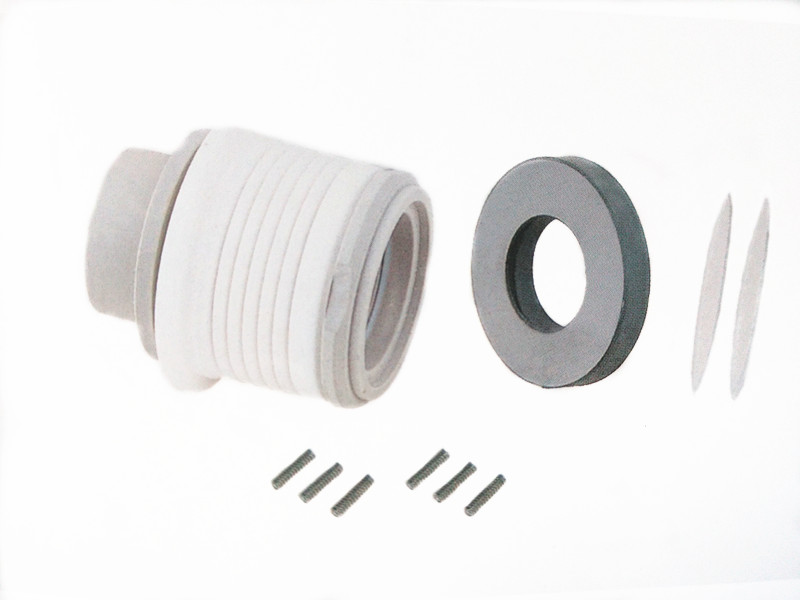

型號：153
技術參數：
被密封介質：水、油類、酸、堿等中等以下腐蝕性化工介質
密封腔壓力：≤0.5MPa
密封腔溫度：80℃
線速度：≤15m/Sec
軸徑：35-70mm
Mediums to be sealed：Water , oil , acid , alkali , etc. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec
Shaft：35-70mm
009

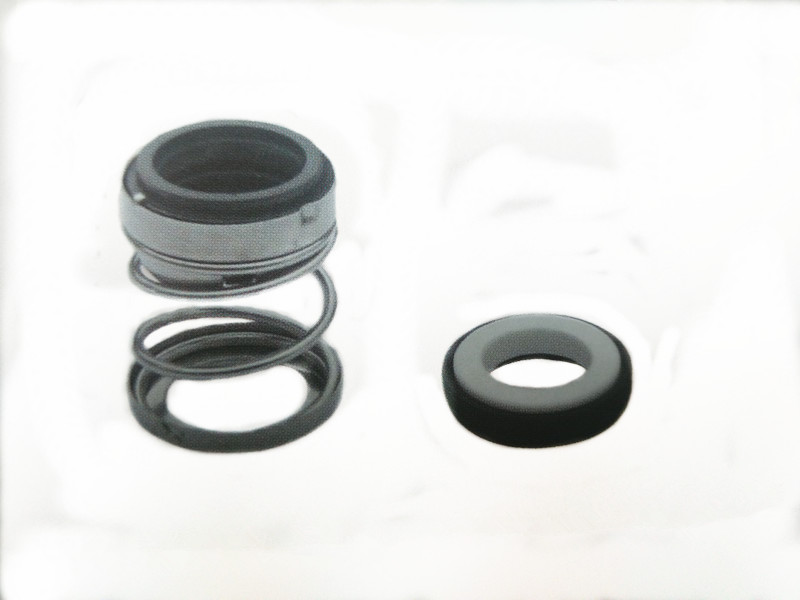

型號：FBD
技術參數：
被密封介質：水、油、中等以下腐蝕性介質
密封腔壓力：≤0.6MPa
密封腔溫度：-20℃~100℃
線速度：≤10m/Sec
Mediums to be sealed：Water , oil , etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec
011

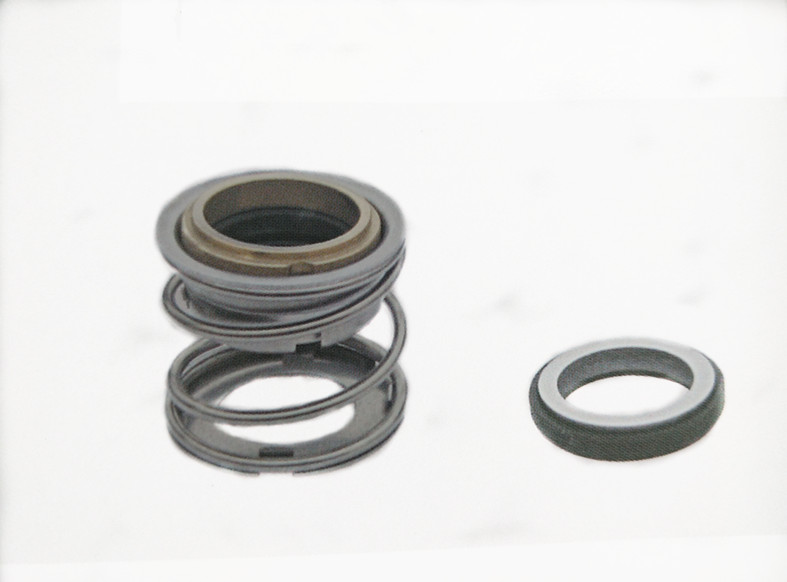

型號：BIA
技術參數：
被密封介質：水、油、等弱腐蝕性介質
密封腔壓力：≤0.6MPa
密封腔溫度：-20℃~100℃
線速度：≤10m/Sec
Mediums to be sealed：Water , oil , etc. weak corrosive medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec
012

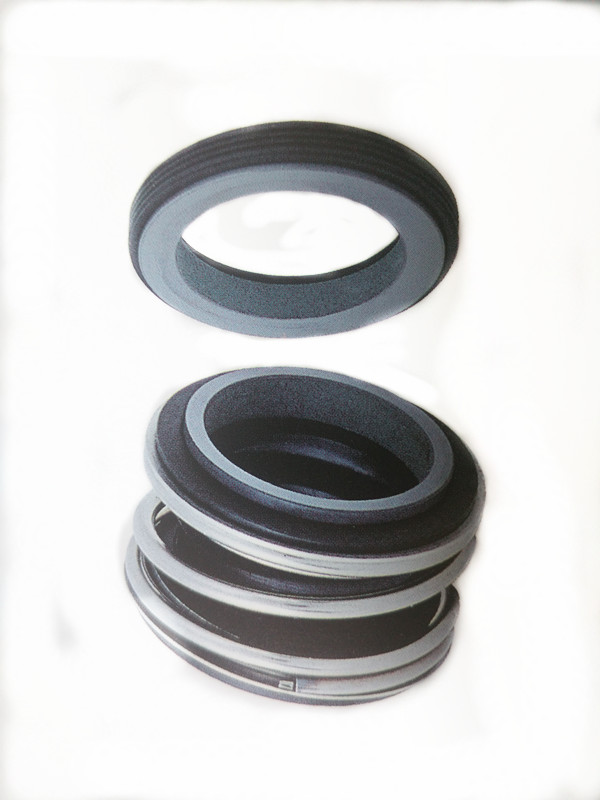

型號：T1
技術參數：
被密封介質：含有顆粒的廢水、污水等一般弱腐蝕性液體
密封腔壓力：≤1MPa
密封腔溫度：-20℃~140℃
線速度：≤10m/Sec
Mediums to be sealed:Waste water with particles,sewage etc. common weak corrosive liquid
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~140℃
Linear velocity：≤10m/Sec
013

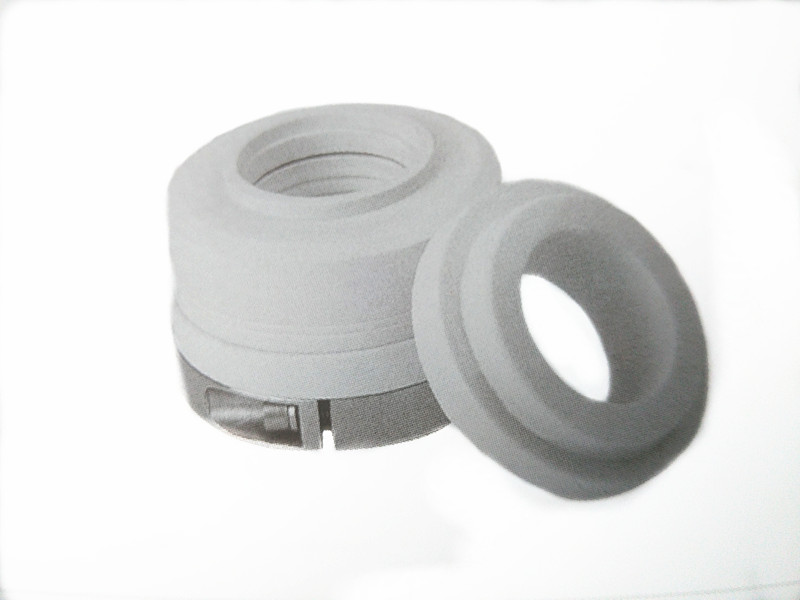

型號：WB2
技術參數：
被密封介質：各種濃度的硫酸，鹽酸，醋酸，磷酸，稀硝酸等強腐蝕性化工介質
密封腔壓力：≤0.5MPa
密封腔溫度：80℃
線速度：≤15m/Sec
Mediums to be sealed：Highcorrsion mediums in different concetration,such as sulfuric,hydrchloric scid,phosphoric acetic acid,ect
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec
